Pitch: Project Name: Version #1

Date: , Domain: GitHub: https://github.com/codeadamca/

Application Purpose

This application will convert a provided image to a set of instructions to recreate the image using LEGO™ bricks.

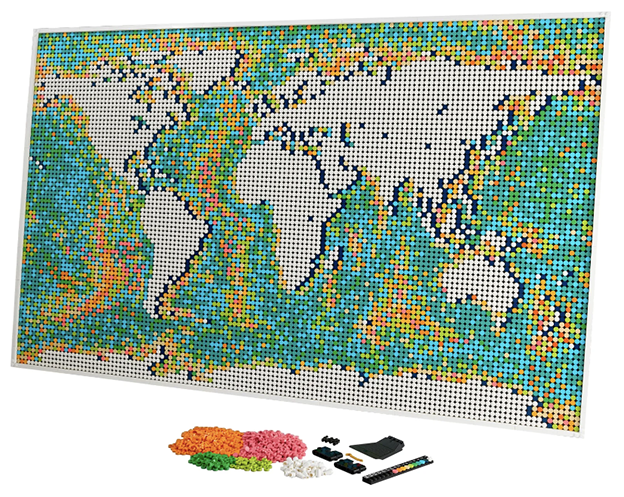

The end result will be instructions to create something similar to the LEGO™ World Map:

Front-End

Front end facing application will include the following features:

• A place to upload an image, specify width and height, and convert the image to a series of LEGO™ bricks (similar to https://legoimage.com/ or https://mingze-gao.com/apps/legao/)
• Resulting image can be downloaded as a JPG
• Result will also display a list of required bricks and quantity, should be styled like typical LEGO™ instructions
• Results will also display a copyable matrix of colours
• Instructions can be downloaded as a PDF
• Each submission will be saved to the database

Instructions will look similar to this:

Taken from the World Map LEGO™ instructions:
https://www.lego.com/cdn/product-assets/product.bi.core.pdf/6372756.pdf

Back-End

Application will include a control panel to achieve the following:

• Login to control panel
• Add, edit, and delete converted images
• View instructions
• Export instructions to PDF

API

Application API will include the following API calls:

Method	Endpoint	Description
POST	/api/convert	Converts a specified image to a matrix of LEGO™ colours. Parameters: image (required): posted JPG, PNG, or GIF width (required): number of studs wide heigh (required)t: number of studs high format: format to return data in, default is “json”but also accepts “jpg” Returns: A matrix of colours for each LEGO™ brick or a JPG format image.
